Water Quality Meters

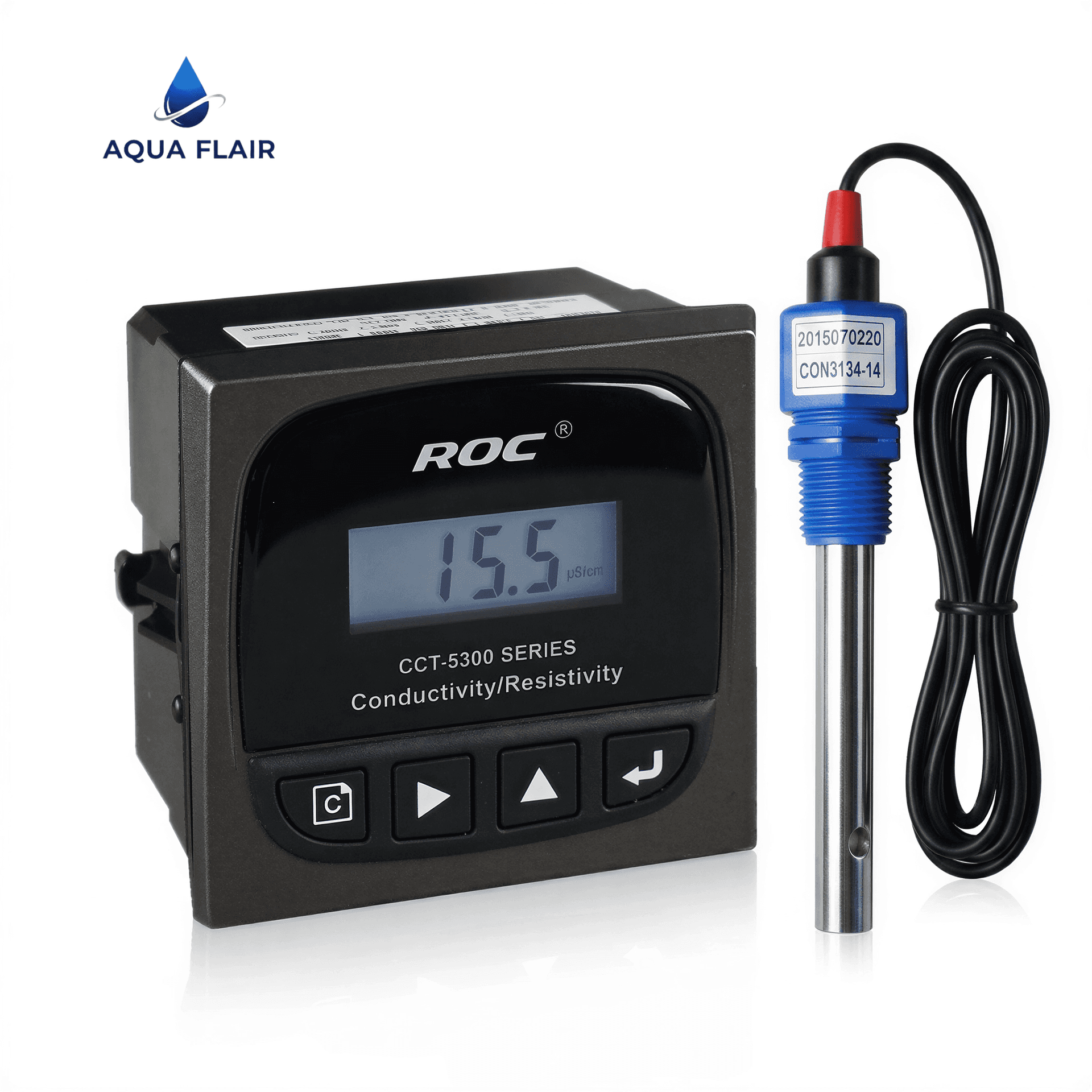

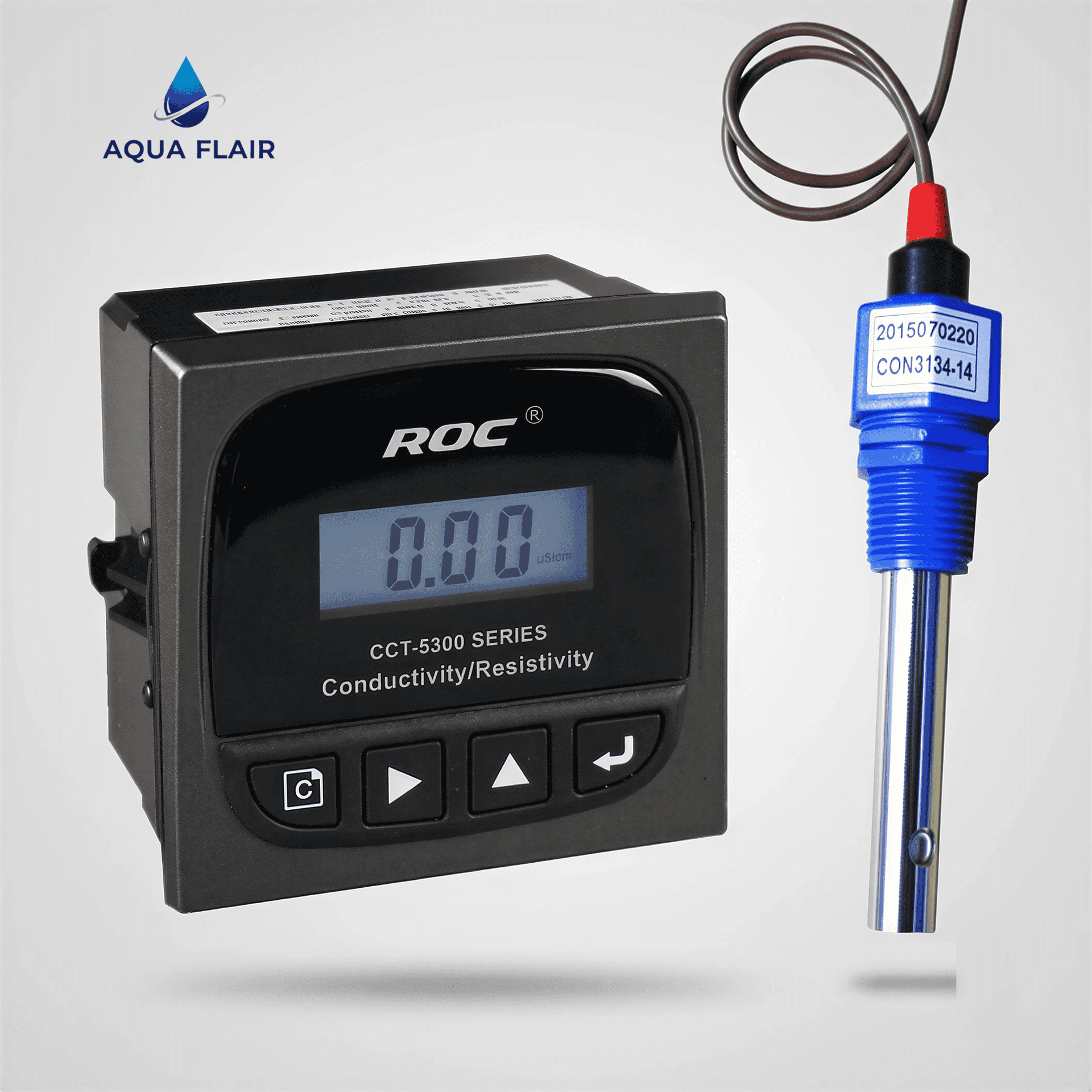

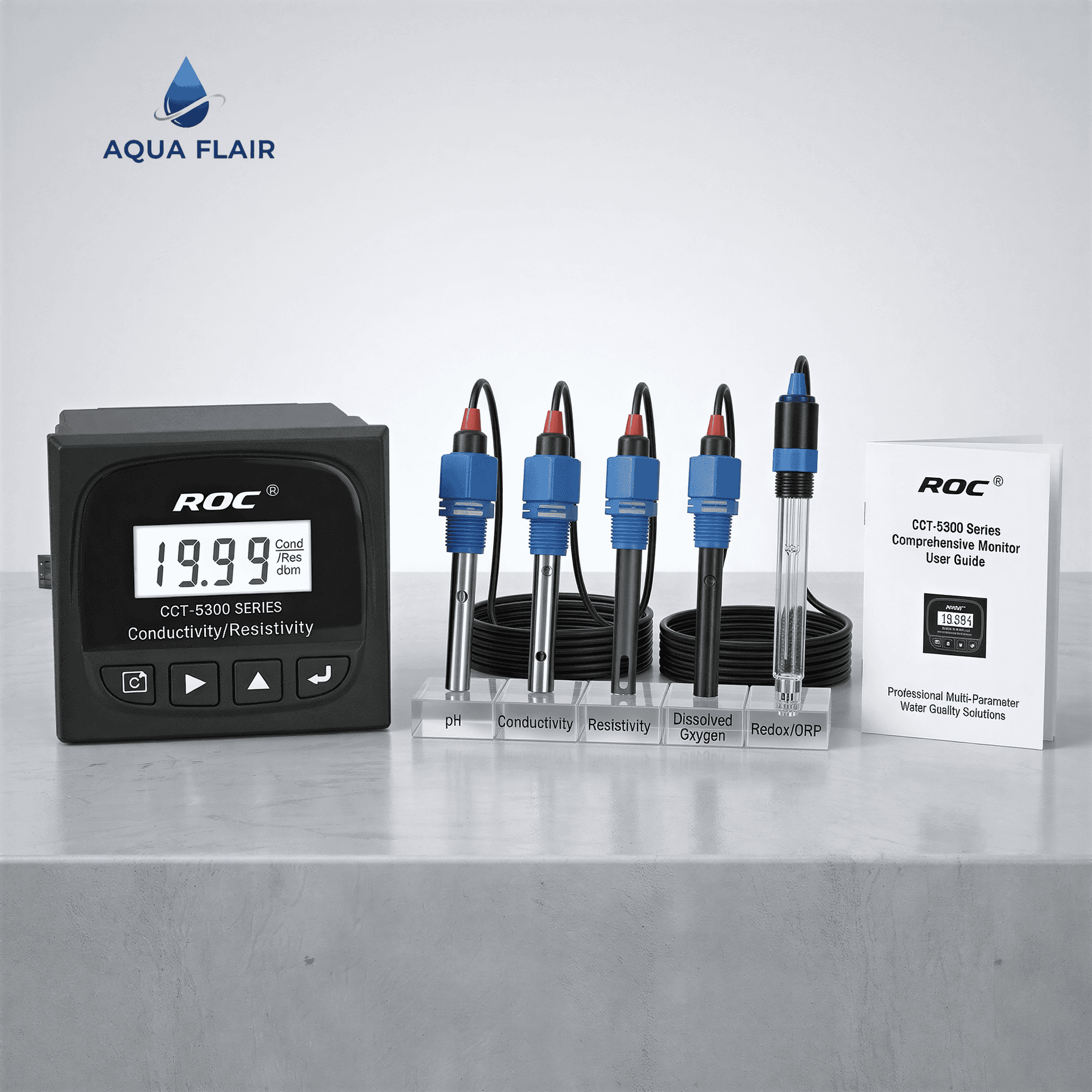

CREATE ROC CCT-5300E TDS / Conductivity Online Controller
CREATE ROC CCT-5300E is an online conductivity / TDS / resistivity controller for RO and process water monitoring.
- Make
- CREATE
- Model
- CCT-5300E
CREATE
Make
4–20mA
Output
CCT-5300E
Model
DC 24V
Power supply
EC / TDS / Resistivity
Parameter
±1.5% FS
Conductivity accuracy
Panel mount
Mounting
±1.5% FS
TDS accuracy
CREATE ROC CCT-5300E online controller
Panel-mount conductivity controller with isolated analog output, relay control, and automatic temperature compensation for continuous process monitoring.
Key Features & Advantages
Continuous Online Monitoring
Conductivity (EC), TDS, and Resistivity in real time
Intelligent Auto-ranging
Automatic measurement range for improved accuracy
Isolated 4–20mA Output
Analog output for PLC and SCADA integration
Automatic Temperature Compensation
NTC 10K compensation for precise readings
Technical Highlights
- Model
- CREATE ROC CCT-5300E
- Parameters
- Conductivity (EC), TDS & Resistivity
- Display
- White Backlit LCD Display
- Control Output
- SPDT Relay
- Temperature Compensation
- Automatic (NTC 10K)
- Certification
- CE Certified
- Dimensions
- 96 × 96 × 105 mm
Operating conditions
- Medium temperature
- 0–50 °C
- Operating humidity
- ≤85% RH (non-condensing)
- Installation
- Indoor panel / cabinet
Applications
- Reverse Osmosis (RO) Plants
- Water Treatment Systems
- Industrial Process Water
- Food & Beverage Manufacturing
- Pharmaceutical Water Systems
Commissioning notes
Use shielded signal cable for the 4–20mA loop and keep sensor wiring away from high-voltage runs. Confirm probe cell constant before first calibration.
Panel cut-out follows the standard 96 × 96 mm controller format.
Package contents
- CCT-5300E controller
- Mounting brackets
- User manual
- Terminal connectors
Calibration tip
Perform a two-point calibration after the probe has stabilized at process temperature for more repeatable readings.
